Electrical Panel Supply
AMF + LT + HT + APFC + Synchronizing + MCC panels. Type-tested designs, premium component options (Schneider, ABB, Siemens, L&T), full single line diagram + BOQ approval before fabrication.
Indicative pricing Rs 25,000 - 30 lakh across panel types. Lead times 2-14 weeks by complexity.
Indicative Panel Pricing by Type & Capacity
Market price bands across the panel types we manufacture and supply. Lower end = cost-tier component brands + basic IP54 enclosure; upper end = premium components (Schneider/ABB/Siemens) + IP65 enclosure + advanced controllers.
| Panel Type | Capacity / Spec | Indicative Price |
|---|---|---|
| AMF Panel (genset auto-changeover) | 62.5 - 250 kVA genset | Rs 25,000 - 1 lakh |
| AMF Panel (genset auto-changeover) | 250 - 1000 kVA genset | Rs 50,000 - 2.5 lakh |
| LT Main Panel (415V) | Up to 800 A | Rs 60,000 - 3 lakh |
| LT Main Panel (415V) | 800 - 2500 A | Rs 1.5 - 8 lakh |
| LT Main Panel (415V) | 2500 - 6300 A | Rs 5 - 25 lakh |
| APFC Panel (power factor correction) | 50 - 400 kVAR | Rs 1 - 5 lakh |
| APFC Panel (power factor correction) | 400 - 2000 kVAR | Rs 4 - 15 lakh |
| HT Panel (11 / 22 / 33 kV) | Basic VCB + protection | Rs 3 - 8 lakh per panel |
| HT Panel (11 / 22 / 33 kV) | Full protection + metering + RMU | Rs 6 - 20 lakh per panel |
| Synchronizing Panel (genset paralleling) | 2 gensets | Rs 3 - 12 lakh |
| Synchronizing Panel (genset paralleling) | 3+ gensets with PMS | Rs 10 - 30 lakh |
Pricing reflects panel supply quotes across our 2024-26 manufacturing. Bands move with component brand selection (Schneider premium / L&T mid / Havells cost), fault level rating (kA), enclosure spec (IP54 vs IP65), and any custom requirements (BMS integration, SCADA, special metering). Final quote after SLD + BOQ approval.

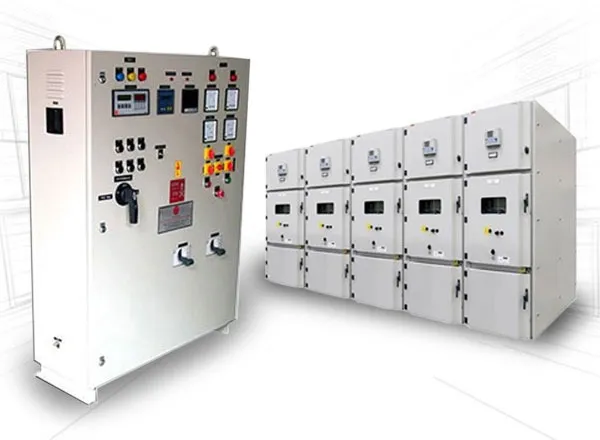

Panel Types We Manufacture
Six panel categories covering complete electrical infrastructure from utility-side HT to genset paralleling.
AMF Panel
Automatic Mains Failure (genset auto-changeover)
Senses mains failure, starts genset, transfers load, monitors voltage/frequency, returns to mains when restored. Critical for any genset installation.
Typically used with: Every diesel/gas genset

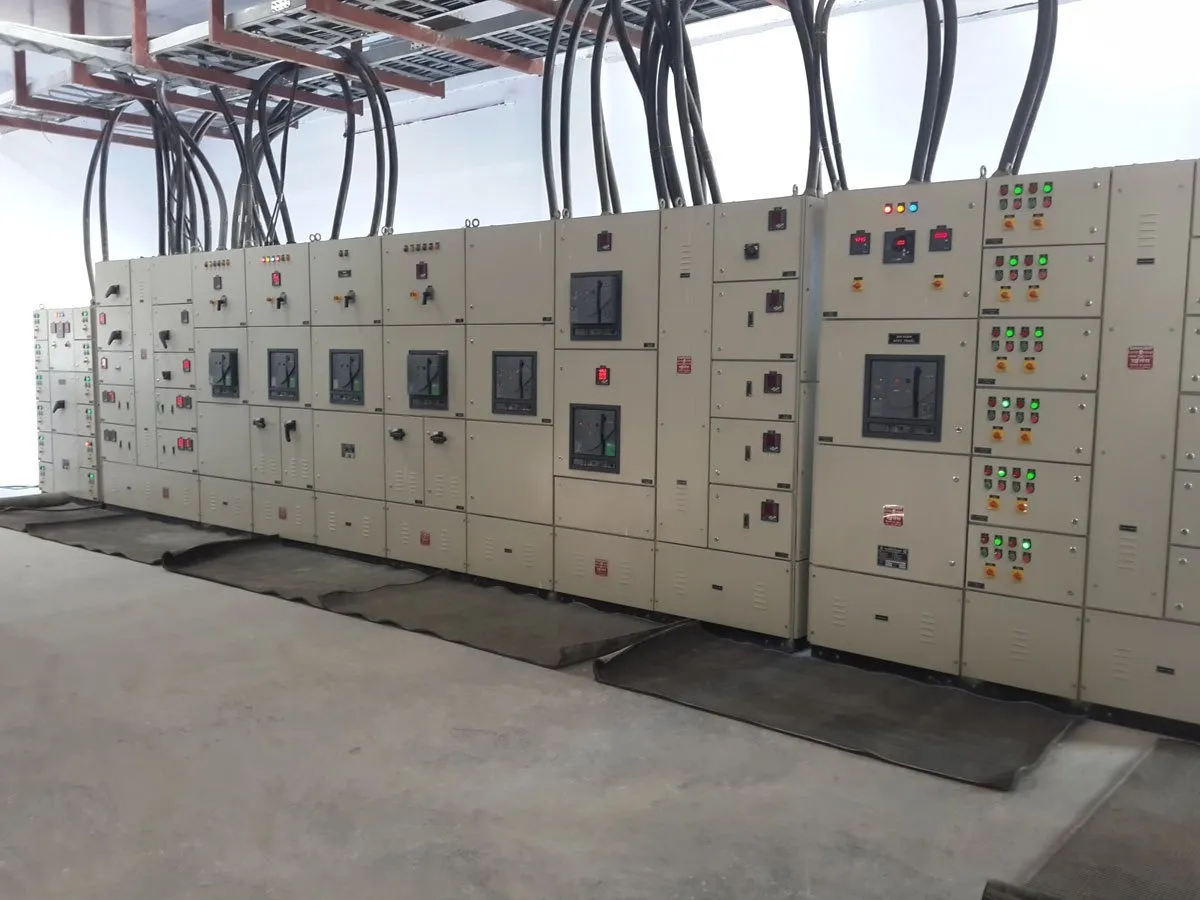

LT Main Panel
Low Tension Main Distribution (415V)
Receives power from transformer or genset, distributes to sub-panels (MCC / PCC / sub-DBs). Houses main breaker, metering, PFC connection point.
Typically used with: Every commercial / industrial site

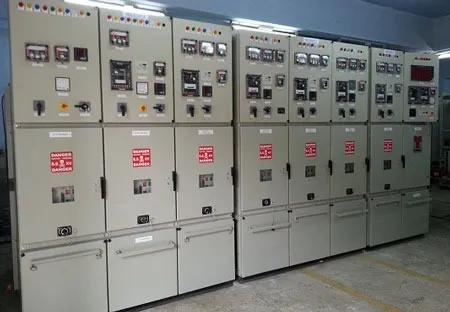

HT Panel / Switchgear
High Tension (11 / 22 / 33 kV)
Receives HV from DISCOM, feeds transformer. Vacuum Circuit Breakers (VCB), surge protection, metering CT/PT, ring main units for multi-feeder sites.
Typically used with: Industrial / commercial with HV connection
APFC Panel
Automatic Power Factor Correction
Capacitor bank with intelligent controller. Maintains power factor above DISCOM threshold (typically 0.95). Avoids reactive power penalties.
Typically used with: Any site with motor loads or inductive equipment
Synchronizing / Paralleling Panel
Multi-genset synchronization
Brings multiple gensets into phase, frequency, and voltage sync. Allows load-sharing across gensets or grid-tie. Required for N+1 / 2N redundancy.
Typically used with: Data centers, hospitals, large IT parks
Motor Control Center (MCC)
Multi-motor starter panel
Centralized motor starting + protection for factories with multiple motor loads. Soft starters, VFDs, DOL, star-delta starter combinations.
Typically used with: Manufacturing facilities
Component Brands Inside Our Panels
What you choose for inside-the-panel determines lifespan, reliability, and price. We offer three component tiers - your call based on budget and criticality.
| Component | Premium Tier | Mid Tier | Cost Tier |
|---|---|---|---|
| ACB / MCCB (main breakers) | Schneider, ABB, Siemens | L&T, Legrand, Mitsubishi | Havells, Polycab, GE |
| Contactors + relays | Schneider, ABB, Siemens | L&T, Mitsubishi | Havells, Anchor |
| Multifunction meters | Schneider, Siemens | L&T, Selec | Meco, Datakom |
| Bus bars | Hindalco / Vimal aluminium, electroplated copper | Indal aluminium, tinned copper | Standard copper |
| AMF / synchronizing controllers | DeepSea (DSE), ComAp | Datakom, Smartgen | Generic Indian OEMs |
| Enclosures (MS sheet) | Schneider Conext, Rittal | Indian fab to spec, powder coated | Local fabrication |
We strongly recommend Premium or Mid tier for critical applications (hospitals, data centers, large factories). Cost tier is acceptable for low-criticality backup or budget-constrained projects. All tiers are honestly disclosed in the BOQ before order placement.
Our Panel Manufacturing Process
Six-step process from SLD to handover. You see every stage, approve at every checkpoint.
Single Line Diagram (SLD)
We prepare SLD based on your load list, fault level, and protection scheme. PE-signed if required.
GA + BOQ Approval
General Arrangement drawing + Bill of Quantity sent for your approval. All component brands itemized.
Fabrication + Assembly
Sheet metal fabrication, powder coating, bus bar bending, internal wiring as per approved drawing.
Routine + Type Tests
Routine test on every panel: insulation, dielectric, continuity, function test. Type-tested designs for IS 8623 / IEC 61439 compliance.
Delivery + Installation
Transport, site placement, cable termination, earthing connection, function commissioning.
Pre-commissioning Tests + Handover
Insulation Resistance (Megger), breaker timing tests, protection relay setting, signed handover documents.
Panel Stack by Industry
Different industries need different panel combinations. Here is what we typically supply per vertical.
Manufacturing
Typical panels: LT main + MCC + APFC + AMF
Motor-heavy load profile, APFC mandatory for utility compliance.
Hospitals
Typical panels: LT main + AMF + auto-changeover + synchronizing (multi-genset)
Fast transfer (<10 sec) critical. Multi-genset N+1 for OT/ICU.
Commercial Real Estate
Typical panels: LT main + APFC + sub-distribution panels
Tower-wise sub-DBs, central APFC at LT main level.
Data Centers / IT
Typical panels: HT + LT + synchronizing + multi-genset paralleling + bypass
Tier III/IV redundancy. Bypass cabinets for UPS maintenance.
What Our Panel Supply Includes
A panel is only half the deliverable. Documentation, testing, and commissioning are the other half.
Single Line Diagram (SLD)
PE-signed if required. Approved by you before fabrication.
GA Drawing + BOQ
General Arrangement drawing + complete Bill of Quantity with all component brands itemized.
Routine + Type Tests
Insulation, dielectric, continuity, function test on every panel. Type-tested designs for IS 8623/IEC 61439.
Installation + Commissioning
Site placement, cable termination, earthing, function commissioning.
Pre-commissioning Tests
Megger test, breaker timing, protection relay setting per Single Line Diagram.
Documentation Pack
Test certificates, GA drawings, wiring diagrams, O&M manual.
2-year Warranty
Workmanship warranty on panel; component warranties pass through from OEM (typically 1-3 years).
AMC Option
Annual maintenance + thermography + protection relay re-calibration available.
